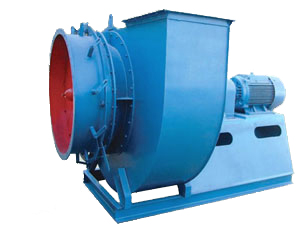

 點擊看大圖
|
|
機號
|
傳動方式
|
轉(zhuǎn)速
rpm |
序號
|
全壓
Pa |
流量
m3/h |
內(nèi)效率
% |
內(nèi)功率
kw |
所需功率
kw |
電動機
|
|
|
型號
|
功率
kw |
|||||||||
|
8
|
D
|
1450
|
1
2 3 4 5 6 7 8 |
2104
2095 2072 2018 1924 1794 1611 1400 |
16156
18244 20442 22530 24618 26706 28904 30993 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
11.80
12.67 13.63 14.42 15.06 15.45 15.53 15.11 |
13.85
14.83 15.99 16.92 17.67 18.13 18.22 17.73 |
Y180M-4
|
18.5
|
|
9
|
D
|
1450
|
1
2 3 4 5 6 7 8 |
2668
2656 2628 2559 2440 2275 2042 1775 |
23003
25976 29106 32079 35052 38026 41155 44128 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
21.27
22.83 24.55 25.98 27.13 27.84 27.99 27.23 |
24.96
26.78 28.81 30.48 31.84 32.67 32.84 31.95 |
Y200L-4
|
30
|
|
Y225S-4
|
37
|
|||||||||
|
9
|
D
|
960
|
1
2 3 4 5 6 7 8 |
1163
1158 1146 1116 1064 992 891 775 |
15229
17198 19270 21238 23207 25175 27247 29216 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
6.17
6.62 7.13 7.54 7.87 8.08 8.12 7.90 |
7.24
7.77 8.36 8.85 9.24 9.48 9.53 9.27 |
Y160L-6
|
11
|
|
10
|
D
|
1450
|
1
2 3 4 5 6 7 8 |
3301
3287 3251 3166 3018 2813 2525 3194 |
31554
35633 39926 44004 48083 52161 56455 60533 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
36.02
38.66 41.58 44.0 45.95 47.15 47.39 46.12 |
42.27
45.36 48.79 51.64 53.92 55.32 55.61 54.11 |
Y250M-4
|
55
|
|
10
|
D
|
960
|
1
2 3 4 5 6 7 8 |
1437
1431 1416 1379 1315 1226 1101 958 |
20891
23591 29134 29134 31834 34534 37377 40077 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
10.45
11.22 12.07 12.76 13.34 13.68 13.75 13.38 |
12.26
13.16 14.16 14.98 15.65 16.06 16.14 15.70 |
Y180L-6
|
15
|
|
Y200L1-6
|
18.5
|
|||||||||
|
10
|
D
|
730
|
1
2 3 4 5 6 7 8 |
829
826 817 796 759 708 636 553 |
15886
17939 20100 22154 24207 26260 28422 30475 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
4.60
4.93 5.31 5.61 5.86 6.02 6.05 5.88 |
5.63
5.79 6.23 6.59 6.88 7.06 7.10 6.91 |
Y160L-8
|
7.5
|
|
11
|
D
|
1450
|
1
2 3 4 5 6 7 8 |
4003
3986 3943 3840 3660 3411 3060 2659 |
41999
47427 53142 58570 63998 69427 75141 80570 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
58.01
62.26 66.97 70.88 74.00 75.93 79.33 74.27 |
68.07
73.05 78.58 83.16 86.84 89.10 89.57 87.15 |
Y280S-4
|
75
|
|
Y280M-4
|
90
|
|||||||||
|
11
|
D
|
960
|
1
2 3 4 5 6 7 8 |
1741
1734 1715 1671 1593 1485 1334 1160 |
27806
31400 35183 38777 42371 45965 49784 53343 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
16.83
18.07 19.43 20.57 21.48 22.04 22.15 21.55 |
19.75
21.20 22.80 24.13 25.20 25.86 25.99 25.29 |
Y200L2-6
|
22
|
|
Y200M-6
|
30
|
|||||||||
|
11
|
D
|
730
|
1
2 3 4 5 6 7 8 |
1004
1000 989 964 919 857 770 669 |
21144
23877 26754 29487 32220 34953 37829 40562 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
7.40
7.94 8.55 9.04 9.44 9.69 9.74 9.48 |
8.69
9.32 10.03 10.64 11.08 11.37 11.43 11.13 |
Y180L-8
|
11
|
|
12
|
D
|
1450
|
1
2 3 4 5 6 7 8 |
4777
4756 4705 4582 4366 4069 3650 3171 |
54526
61574 68992 76040 83088 90135 97554 104600 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
89.63
96.19 103.46 109.49 114.33 117.31 117.92 114.75 |
105.17
112.87 121.40 128.47 134.15 137.65 138.36 134.65 |
Y315M1-4
|
132
|
|
Y315M2-8
|
160
|
|||||||||
|
12
|
D
|
960
|
1
2 3 4 5 6 7 8 |
2075
2066 2044 1990 1898 1769 1588 1381 |
36100
40766 45677 50344 55010 59676 64587 69253 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
26.01
27.91 30.03 31.77 33.18 34.0 34.22 33.30 |
30.52
32.76 35.23 37.29 38.94 39.95 40.16 39.08 |
Y250M-6
|
37
|
|
Y280S-6
|
45
|
|||||||||
|
12
|
D
|
730
|
1
2 3 4 5 6 7 8 |
1196
1191 1178 1148 1094 1020 916 797 |
27451
30999 34734 38282 41830 45378 49113 52661 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
11.44
12.27 13.20 13.97 14.59 14.97 15.05 14.64 |
13.42
14.40 15.49 16.39 17.12 17.57 17.66 17.18 |
Y200L-8
|
15
|
|
Y225S-8
|
18.5
|
|||||||||
|
14
|
D
|
1450
|
1
2 3 4 5 6 7 8 |
6541
6513 6442 6272 5975 5566 4990 4333 |
86586
97777 109550 120740 131940 143430 154910 166100 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
193.7
1207.90 223.63 236.66 247.13 253.56 254.89 248.02 |
227.30
243.96 262.41 277.7 289.99 297.53 299.10 291.04 |
Y355L1-4
|
280
|
|
Y355L2-4
|
315
|
|||||||||
|
14
|
D
|
960
|
1
2 3 4 5 6 7 8 |
2831
2919 2789 2716 2589 2414 2166 1883 |
57326
64735 72534 79944 87353 94763 102560 109970 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
56.22
60.33 64.90 68.68 71.72 73.59 73.97 71.98 |
65.97
70.80 76.16 80.56 84.16 86.35 86.80 84.46 |
Y315S-6
|
75
|
|
Y315M1-6
|
90
|
|||||||||
|
14
|
D
|
730
|
1
2 3 4 5 6 7 8 |
1630
1623 1606 1564 1491 1391 1291 1086 |
43591
49225 55156 60797 66425 72059 77990 83624 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
24.72
26.53 28.54 30.20 31.54 32.36 32.53 31.65 |
29.01
31.13 33.49 35.44 37.00 37.97 38.17 37.14 |
Y280S-8
|
37
|
|
Y280M-8
|
45
|
|||||||||
|
16
|
D
|
960
|
1
2 3 4 5 6 7 8 |
3709
3693 3653 3558 3391 3161 2836 2465 |
85571
96631 108270 119330 130390 141450 153090 164150 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
109.6
117.63 126.53 133.91 139.86 143.46 144.21 140.33 |
128.60
138.03 148.47 157.12 164.08 168.33 169.23 164.66 |
Y355M2-6
|
45
|
|
, 16
|
D
|
730
|
1
2 3 4 5 6 7 8 |
2133
2124 2101 2047 1951 1819 1633 1420 |
65069
73480 82333 90743 99153 107560 116410 124820 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
48.19
51.72 55.61 58.88 61.48 63.08 63.41 61.70 |
56.55
60.69 65.29 69.09 72.15 74.02 74.41 72.41 |
Y315M1-4
|
75
|
|
16
|
D
|
580
|
1
2 3 4 5 6 7 8 |
1343
1337 1323 1289 1228 1146 1029 895 |
51699
58381 65415 72097 78779 85462 92495 99178 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
24.17
25.94 27.97 29.53 30.84 31.64 31.80 30.95 |
28.36
30.44 31.75 34.65 63.18 37.13 37 32 36.31 |
Y315S-10
|
45
|
|
18
|
D
|
960
|
1
2 3 4 5 6 7 8 |
4710
4690 4639 4518 4305 4012 3599 3126 |
121830
134580 154160 169910 185650 201400 217980 233730 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
179.51
211.97 228.02 241.3 251.97 258.53 259.88 252.88 |
231.77
248.73 267.57 283.15 295.67 303.37 304.95 296.74 |
Y355-6
|
280
|
|
*JSQ148
|
310
|
|||||||||
|
18
|
D
|
730
|
1
2 3 4 5 6 7 8 |
2705
2693 2664 2595 2474 2306 2070 1800 |
92648
104620 117220 129200 144470 153150 165750 17730 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
86.82
93.21 100.26 106.1 110.79 113.67 114.27 111.19 |
101.91
109.37 117.64 124.49 130 133.37 134.09 130.46 |
Y355M1-8
|
132
|
|
18
|
D
|
580
|
1
2 3 4 5 6 7 8 |
1702
1694 1676 1633 1557 1452 1303 1133 |
73610
83125 93140 102650 112160 121680 131690 141210 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
43.56
46.75 50.29 53.22 55.57 57.01 57.31 55.77 |
51.11
54.83 89.01 62.45 65.21 66.90 67.25 65.44 |
Y315M2-10
|
75
|
|
20
|
D
|
960
|
1
2 3 4 5 6 7 8 |
5837
5812 5749 5598 5334 4969 4453 3870 |
167130
188730 211470 233070 254670 276270 299010 320610 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
334.49
358.98 386.15 408.65 426.81 437.82 441.12 428.25 |
392.5
421.24 453.13 379.52 500.73 513.76 516.46 502.52 |
*JSQ148-6
|
430
|
|
JSQ1410-6
|
520
|
|||||||||
|
20
|
D
|
730
|
1
2 3 4 5 6 7 8 |
3347
3333 3297 3211 3060 2853 2560 2225 |
127080
143510 160800 177230 193660 210080 227370 243800 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
147.07
157.8 169.79 179.68 187.63 192.51 193.52 188.30 |
172.58
185.21 199.23 210.85 220.16 225.89 227.07 220.96 |
Y355-8
|
320
|
|
Y355-8
|
250
|
|||||||||
|
20
|
D
|
580
|
1
2 3 4 5 6 7 8 |
2014
2095 2072 2018 1924 1794 1611 1400 |
100970
114020 127760 140810 153860 166910 180650 193700 |
79.4
83.2 85.7 87 86.8 85.6 82.8 79.4 |
73.77
79.17 85.16 90.12 94.11 96.55 97.05 94.44 |
86.56
92.90 99.93 105.75 110.42 113.30 113.89 110.82 |
Y355M-10
|
110
|
|
Y355L1-10
|
132
|
|||||||||
